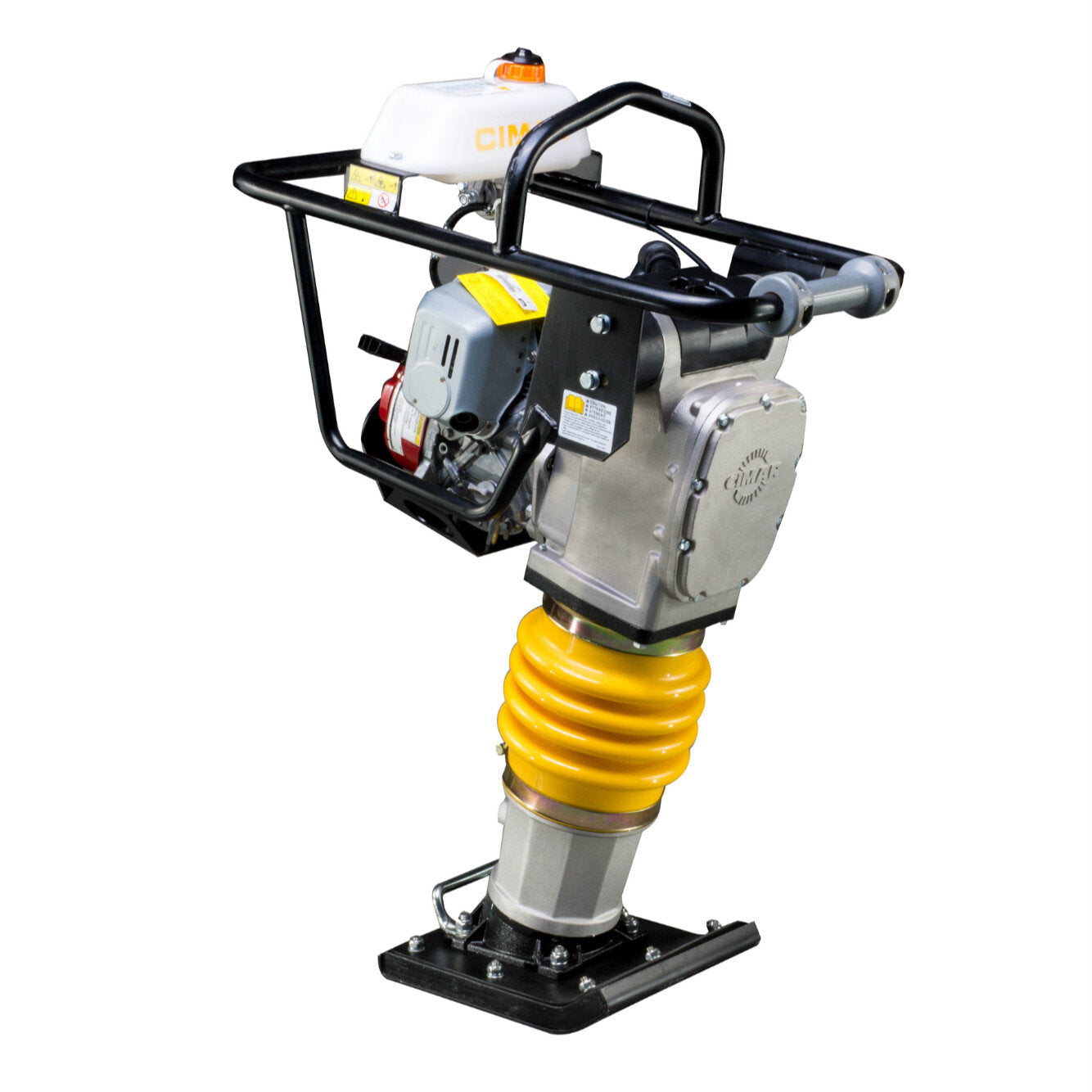

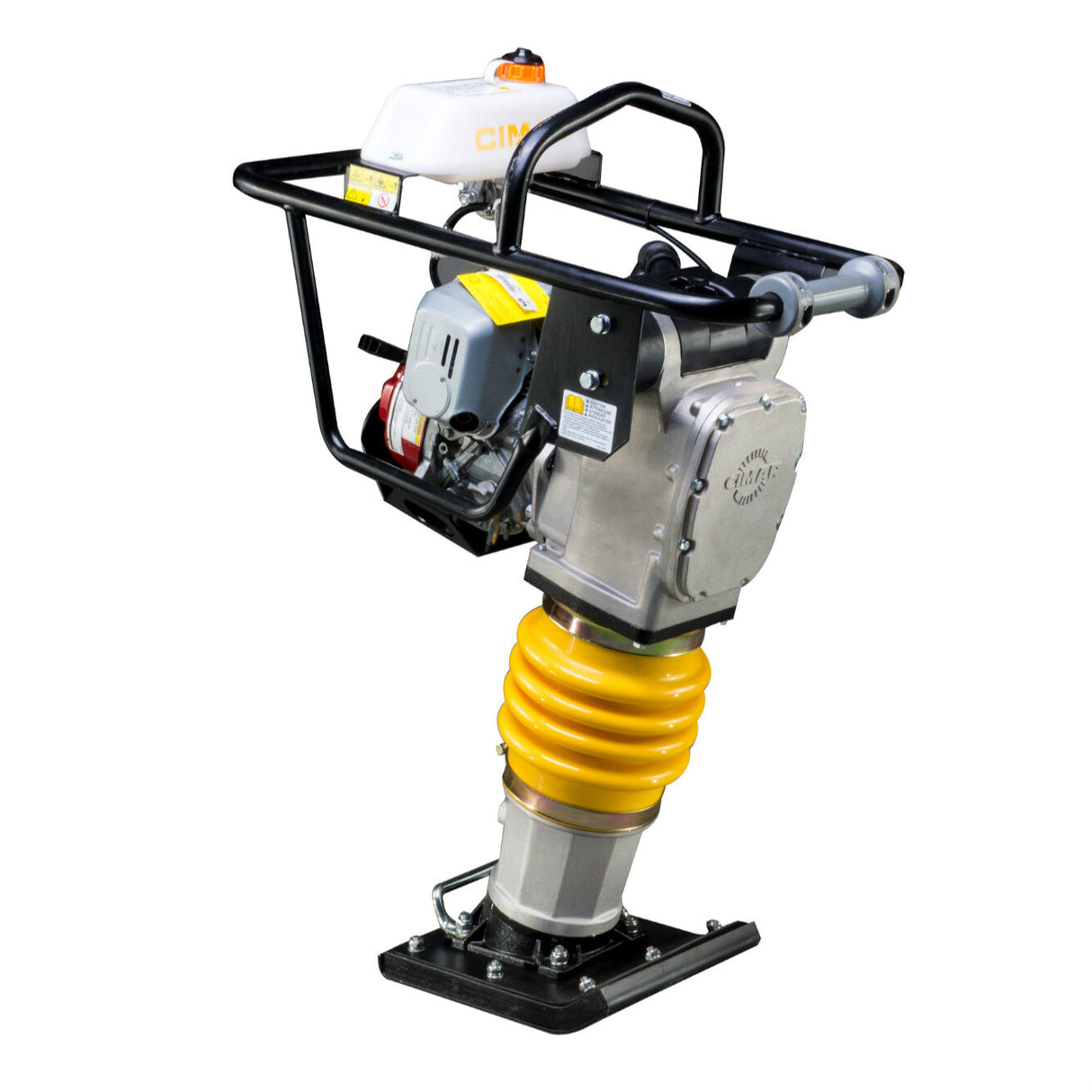

Cimar Tamping Rammer

Our CT-66P-2A CIMAR Tamping Rammer is a small to midsize tool with excellent maneuverability and a very efficient work rate.

Ideal for small area construction site work. Every CIMAR Tamping Rammer is tested before delivery.

We promise the products high quality, low cost and excellent performance. Features Include: CT-66P-2A is installed with a 4-cycle Honda GX100 engine, Honda GX100 engine, Heavy Duty Throttle lever is made by Casting Aluminum which is more durable and comfortable for the operator.

The additional 2-Stage big Air cleaner system on the crank case combine with the original engine air element.

The two stages air cleaner system provides a longer life span for the engine.

Two stages oil filter system in the fuel tank provides a longer life span for the carburetor.

We offer two different designs on oil tank and frame. High quality shock absorber could absorb vibration efficiency. So the operator feels comfortable.

The polyurethane bellow is made in Germany. Foot assembly is made by steel plate with wooden insert.

Model	CT66P
Weight (Kg)	66
Engine	Honda GX100
Vibration Frequency Hz(vpm)	-
Centrifugal Force kN(kgf)	-
Max Power Output kW(ps)	2.1(2.8)
Dimension (mm) L	720
W	280
H	1045
Plate Size (mm) L	300
Max.Travelling Speed m/min	-
Jump Stroke (mm)	50-75
Max. Impact Force kN(kgf)	12.7(1300)
Impact Frequency (Num/min)	640-680
Fuel Tank Capacity (L)	2
